【use】

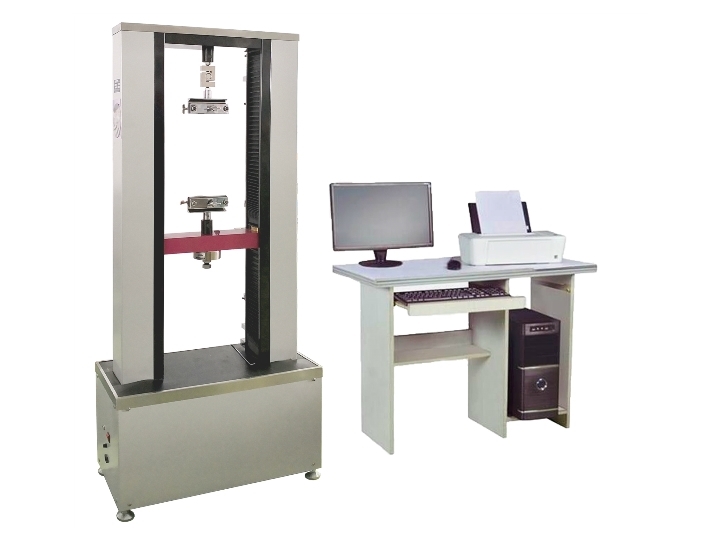

YG026T fabric strength tester is used to measure the breaking strength and breaking elongation of high-strength textiles, geotextiles, geosynthetics, slings, tonnage bags, container bags, safety belts, etc. The equipment must be connected to a computer. Choose self-equipped computer or factory-equipped computer.

【Standards compliant】
GB/T15788, GB/T13763, GB/T14800, GB/T 16989, GB/T10454, GB/T6096, etc.

[Instrument features]
1. The instrument is a utility model invention patent and invention patent (utility model invention patent certificate number: ZL: 200620073811.5), invention patent certificate number: ZL: 200610085935.X), and it has obtained a high-tech product certification (certificate number: 060404G0145N) , Has a number of patent certificates.
2. Using servo control system, the instrument runs more stable.
3. The use of high-precision trapezoidal screw rod, with large bearing capacity.
4. Force measuring system: using high-precision sensors, the test data is accurate.
5. Display features: dynamic tracking (monitoring) of the curve during the test, automatic scaling of the curve coordinates (no intervention by the tester), and simultaneous tracking and display of reports and curves.
6. Operating software: automatic switching between Chinese and English.

[Instrument performance and main technical parameters]
This instrument is measured according to the principle of constant velocity elongation (CRE), the whole process is controlled by a computer, and the dynamic changes of the curve and the breaking strength, breaking elongation (elongation), time, number of times, etc. are recorded.
1. Test products: geotextiles, geosynthetics, slings, ton bags, etc.
2. Tension sensor range: 10000N / 20000N /30000N /50000N (optional)
3. Force measurement accuracy: <±1%
4. Clamping distance: 25～500mm (steplessly adjustable)
5. Stretching speed: 0.5～500mm/min (steplessly adjustable)
6. Elongation resolution: 0.01mm
7. Printing: various forms of data, curves and statistical results of breaking strength, breaking strength, breaking elongation, breaking elongation, breaking time
8. Equipment dimensions: 750mm×360mm×1680mm (length×width×height)
