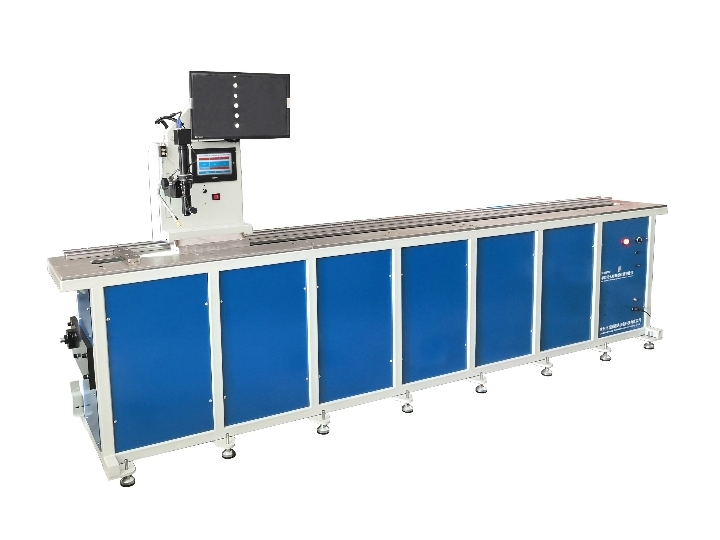

SG689WF type semi-automatic melt blown cloth spinneret mirror inspection instrument
(1) Brief description of the instrument:
The SG689WF type semi-automatic melt blown spinneret mirror inspection instrument is mainly composed of an optical imaging system. The motion control system is composed of the spindle and automatically runs. The melt blown non-woven spinneret, spunbond spinneret and other non-woven spinnerets can be observed through the display Plate microwells.(2) [Equipment features and introduction]
1. It adopts X-Y-Z three-axis motion control platform (that is, three-axis orthogonal robot), and the spindle adopts servo motor for positioning. Repeated positioning accuracy can reach +-0.01mm.
2. The lens adopts imported continuous zoom lens. It has the characteristics of small distortion and high resolution
Third, the camera adopts a high frame rate and high resolution camera to ensure that the collected images are not distorted. In order to ensure the measurement accuracy.
Fourth, use a constant LED light source to ensure that the test environment is not affected by external light sources.
5. The overall frame adopts a metal frame, (the working platform adopts a whole thickened aluminum plate to ensure the flatness of the platform).
6. Equipped with a display. It is convenient to observe the test process and progress.
7. Servo motor drive, high efficiency, equipped with a large touch screen, can set the movement speed, can be set to move left or right, convenient and flexible.
8. Equipped with air nozzles, which can be connected with compressed air to blow off dust.
Nine, equipped with high-definition lens, convenient to capture images, free adjustment of magnification 0.7x-4,5x.
