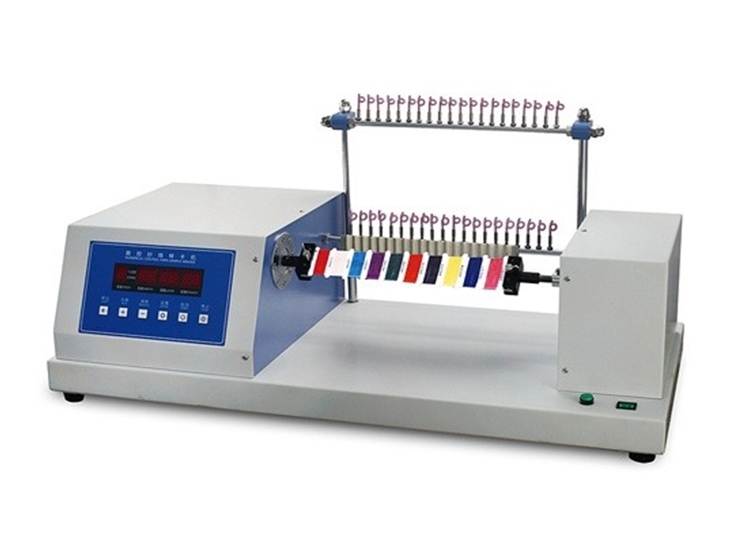

Y108 CNC yarn sample card machine (yarn color card machine)
1、 Product Overview
Y108 CNC yarn sample card machine (yarn color card machine) adopts microcomputer control and LED display. The winding process program is controlled according to the process parameters set by the user, such as winding speed, winding width, winding layers, winding density, etc. The stepper motor is used as the power winding, and the imported Autonics subdivision precision stepper motor drives the precision linear light bar to perform reciprocating wire arrangement. The adjustable tensioner can adjust the yarn tension according to needs.Mainly used for winding sample cards of yarn, nylon thread, polyester thread, embroidery thread, gold and silver silk thread and other materials, it can wind 1-20 color samples on hard cardboard with a length of 100-290mm and a width of 10-50mm.
2、 Main technical parameters
1. Sample card size: If the effective winding length exceeds 290mm and the width exceeds 50mm, customization is required
2. Color sample spacing: customized according to user needs
3. Winding speed: 100-900r/min (can be digitally set)
4. Winding width: 5-50mm (can be digitally set), customization is required if it exceeds 50mm
5. Number of winding layers: 1-99 layers (can be digitally set)
6. Winding density: 0.01-0.99mm per step (can be digitally set), customized if exceeding 1mm
7. Number of windings: 1-20, customization is required for quantities exceeding 20
8. Dimensions: Host 850 × 400 × 420mm (W × D × H)
Yarn frame 530 × 530 × 550mm (W × D × H)
9. Power supply: AC220V50Hz
10. Motor power: 60W
