[Description]:

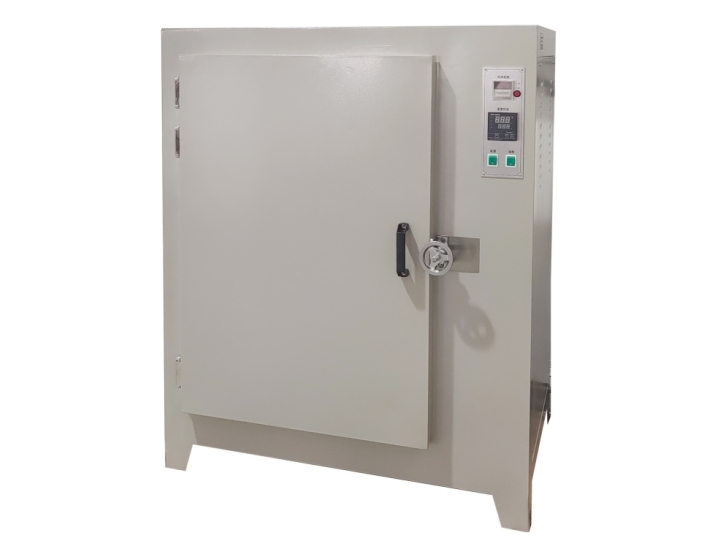

This equipment is a specialized oven for YG368 fully automatic filament curling shrinkage tester, and is also suitable for baking, drying, and other high-temperature tests in related enterprises. This oven is used to measure various types of modified fibers (polyester, nylon, polypropylene) samples. It is hung on a sample rack and subjected to heat treatment according to standards. After cooling, it is supplied to the YG368 fully automatic filament curling shrinkage tester for various shrinkage tests. This oven needs to be used in conjunction with the YG368 fully automatic filament curling shrinkage tester.
[Technical Parameters]:
1. Temperature range: Room temperature to 300 ℃
2. Timing range: 1 second to 99.99 hours
3. Studio size: 570mm x 620mm x 930mm (length x width x height) can be customized according to customer requirements
4. Shelf size: 4l5 × 460mm
5. Heating power: 6000W
6. Power supply; AC380V (three-phase four wire system)
7. Temperature fluctuation: ≤ ±1℃
8. Dimensions: 1050mm x 810mm x 1310mm (length x width x height)
