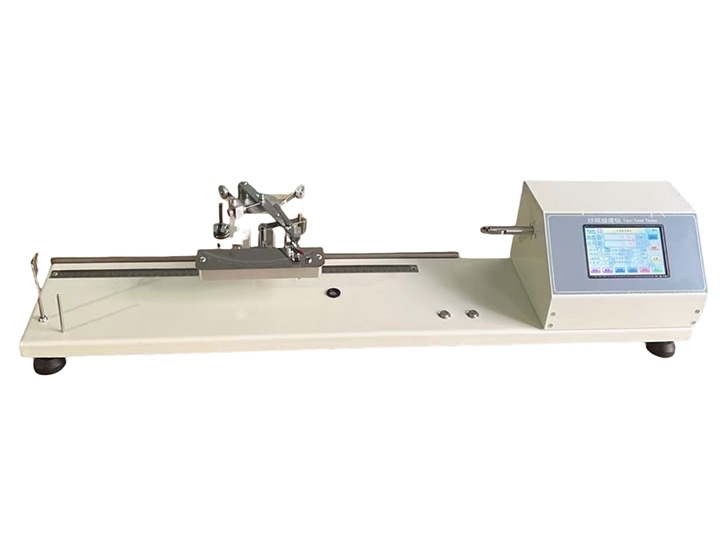

Y331C Electronic Yarn Twister (Touchscreen Version)
Product Usage:
The Y331C electronic yarn twist meter (touch screen version) is used for measuring the twist, twist unevenness, and twist shrinkage of various cotton, wool, silk, synthetic and other yarns and strands.Compliant with standards GB/T 2543.1, GB/T 2543.2, ISO 2061, ISO 17202, BS2085, ASTM D 1422, ASTM D 1423, etc.
Instrument characteristics:
1. It adopts microcomputer control, automatically processes data, displays and can be printed out. Its characteristics are accuracy, stability, reliability, and can correctly reflect the technical indicators of yarn.
2. The yarn gripper is directly driven to rotate by a motor, with stepless speed regulation, and is designed with speed measurement function to accurately measure the speed of the yarn gripper (motor).
3. The CPU can automatically determine the rotation direction of the yarn gripper and process counting automatically.
4. Equipped with a large touchscreen operation, the Chinese and English language interfaces can be freely switched.
Main technical indicators:
1. Transmission method: Electric motor transmission.
2. Twist range: 1 to 99999.99 twists.
3. Yarn tension: There is a set of weights: 0.5cN1, 1cN1, 2cN2, 5cN2, 10cN1, 20cN1, which can be adjusted according to the type of yarn.
4. Speed: continuously adjustable from 100r/min to 2000r/min.
5. Test length: freely set between 10-500mm.
6. Test frequency: ≤ 90 times.
7. Testing method: a、 Manual testing; b、 Direct counting method; c、 One time untwisting and twisting method; d、 Secondary untwisting and twisting method; e、 Triple untwisting and twisting method.
8. Test data output method:
a、 Display output: The local touch screen can display the number of tests, single twist value, and twist coefficient.
b、 Print output: This machine can be connected to a printer.
c、 Can be connected to microcomputer software, and after connecting to the computer, it has more storage functions, making it easy to store data for a long time. The number of experiments is Nn; The number of occurrences below the average twist Nl; Mean square deviation S; Uneven rate H; Coefficient of variation (CV); Twist coefficient α
9. Power supply: AC220V 50HZ
