◆ SF-1 type differential pressure method micro-moisture analyzer main features: after drying, polyester chips, nylon 6 particles and other micro-moisture directly affect the spinning quality. At present, the main methods used for the determination of trace moisture are differential pressure method, electrolysis method, Karl Fischer method, etc. The differential pressure method is fast, accurate, convenient, low-cost, and moderate in instrument prices, and is especially suitable for factories and enterprises.

◆ SF-1 differential pressure method trace moisture analyzer, mainly used for the determination of trace moisture of polyester chips and nylon 6 particles in the chemical fiber and plastic industries before melt spinning and after drying treatment. The development of this instrument solves In the current laboratory, the trouble of self-preparation and self-assembly of components is required, and the advantages of imported machines are absorbed in the structure, and the company's scientific research strengths are used to ensure the accuracy of moisture determination and convenient use.

◆ Applicable standards: ISO6188-1980 "Plastics-Determination of Water Content in Polyethylene Terephthalate Granules"; DIN EN ISO 960-1998 "Determination of Plastics. Polyamide (PA). Water Content"; GB/T 12006.2 -1989 "Method for Determination of Water Content of Polyamide".

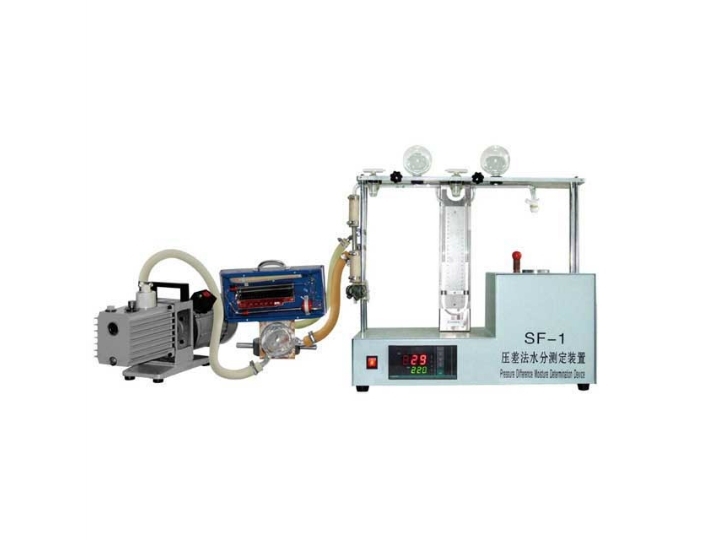

◆ Instrument composition: It is mainly composed of a differential pressure method glass instrument, a heater, an automatic centering and lifting device, a temperature controller, a vacuum gauge, a vacuum pump, etc., and is equipped with sodium molybdate reagent and vacuum grease.

The main technical parameters:
1. Moisture content: 5～500 ppm (when the sample weighs 3g)
30～3000 ppm (when the sample weighs 0.5g)
Corresponding to the highest measurable water content 1.5mg
2. Temperature range: room temperature～250℃
3. Display error: ±3℃ (170℃, 195℃, 220℃
4. Temperature fluctuation: ±2℃
5. Vacuum degree: ≤100Pa
6. Power supply: 220V 50Hz 2A
