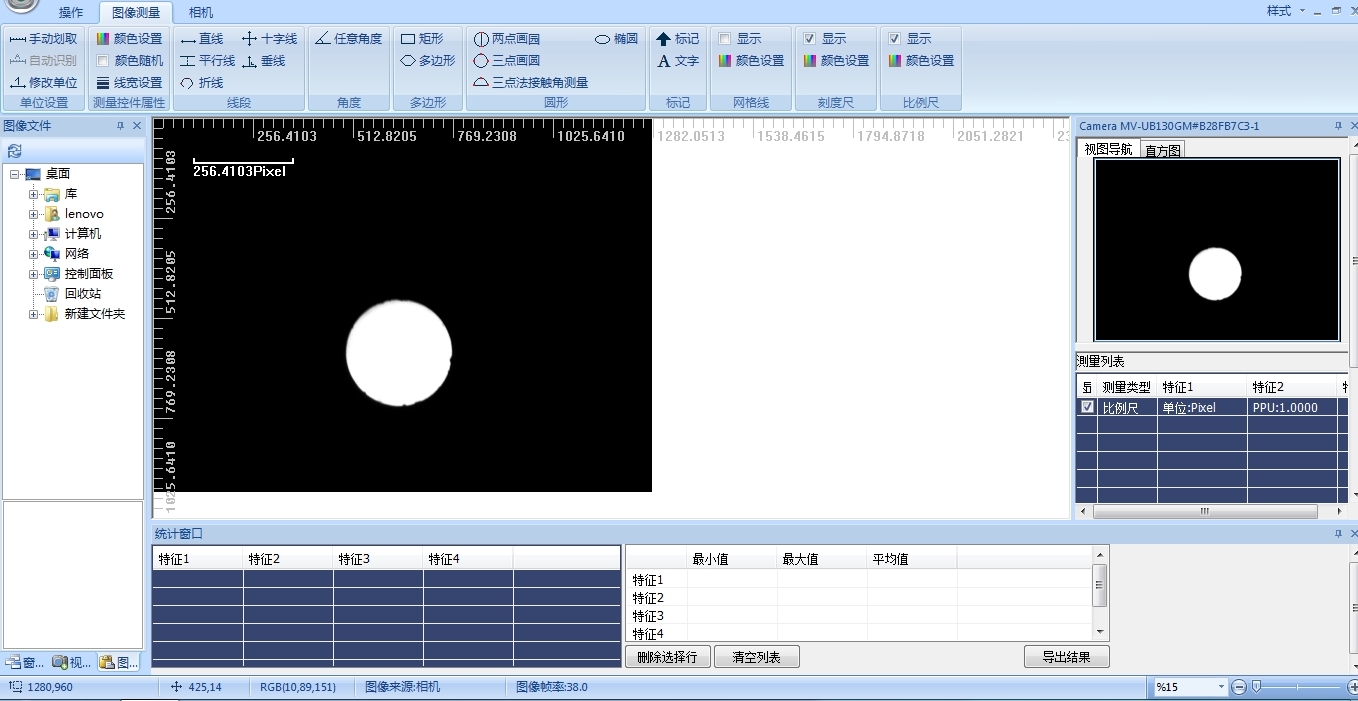

Measurement software displays the image of the spinneret

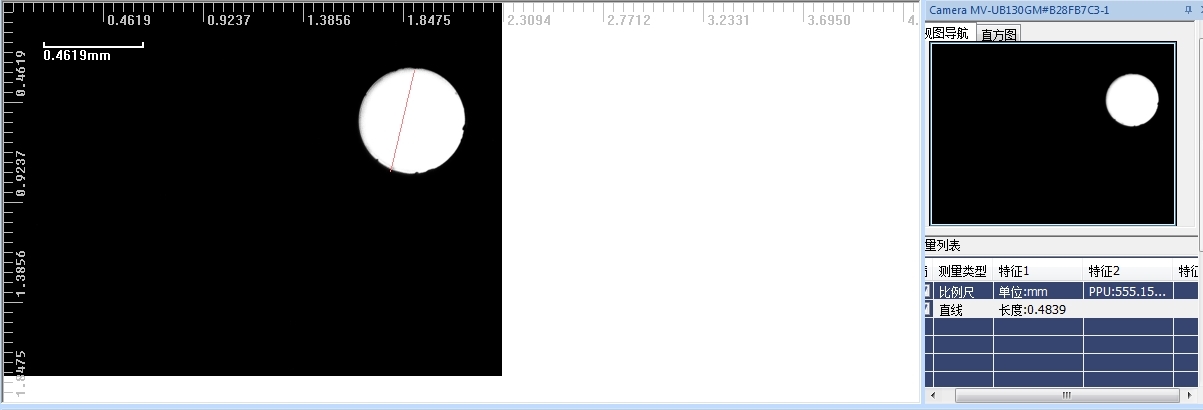

The measurement software measures the size of the micro holes on the spinneret, and the diameter of the micro holes on the circular spinneret in the figure is 0.4839mm

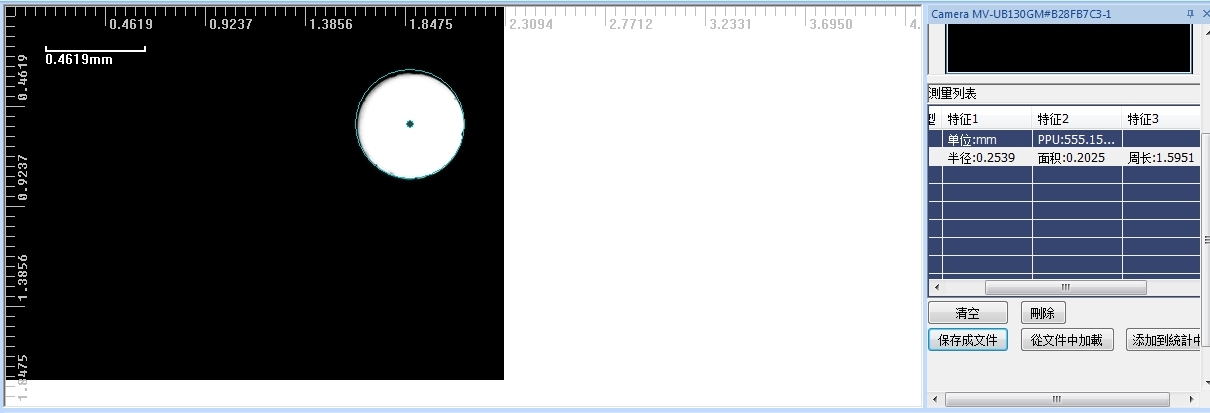

Measurement software measures the micro hole radius of the spinneret at 0.2539mm, with an area of 0.2025mm² and a circumference of 1.5951mm

1、 Product Usage:

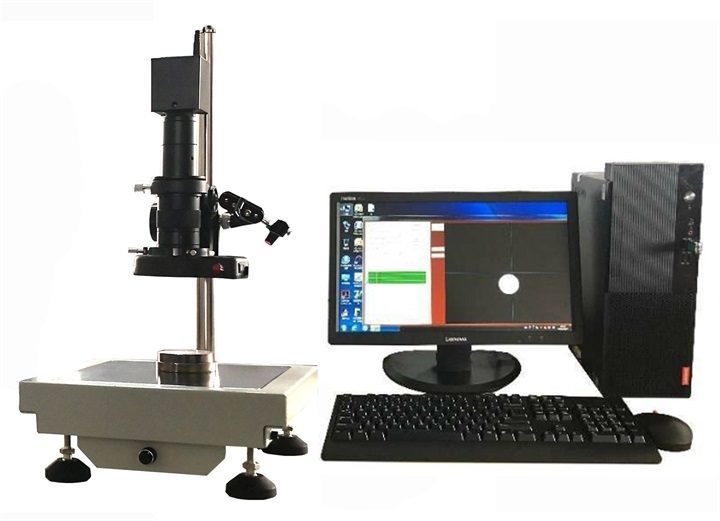

The SG689JS manual spinneret mirror inspection instrument (metal table+display) is mainly used in domestic chemical fiber production plants and spinneret manufacturing plants to detect various types of spinneret micropores, check for dirt on the spinneret micropores, and the display can project and display the shapes of various spinneret micropores (such as circular holes, three leaf holes, V-shaped holes, C-shaped holes, etc.).

2、 Technical indicators:
1. Objective lens zoom range: 0.7-4.5X
2. Magnification ratio: 1:6.5
3. Handwheel focusing range: 65mm
4. Adjustment range for lifting and lowering (column): 300mm,
5. Lighting: Input voltage: 220V, output: 12V
6. Workbench size: 210mm × 210mm

3、 Detailed technical configuration of the equipment:
1. One high-definition camera (industrial camera+communication cable)
2. Changzhou Shuanggu self-made metal countertop, with a countertop size of 210mm × 210mm
3. One lifting and adjusting bracket (used to adjust the focal length)
4. One set of infrared positioning light source (used to locate the micro holes of the spinneret)
5. One set of upper circular light source
6. One high-definition zoom objective lens, zoom ratio (1:6.5): 0.7X-4.5X
7. One set of spinneret measurement software, used to measure the diameter, area, and circumference of the micro holes on the spinneret.
8. Equipment dimensions: 270mm × 330mm × 500mm (length × width × height)
9. Weight: 11kg
