use:

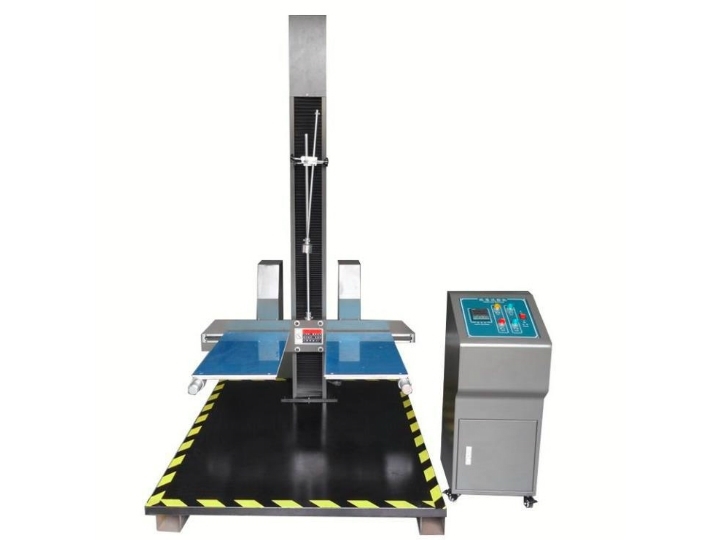

The SG986-II double-arm drop tester is mainly used to assess the impact of the package during the actual transportation, loading and unloading process, and evaluate the impact resistance of the package during the handling process and the rationality of the packaging design.

The design standard of the double-arm drop tester meets: GB4757.5-84, JISZ0202-87, ISO2248-1972(E).
This machine adopts a double-wing model, which can fix the test product very smoothly. It adopts electric lift, drop, manual reset, easy operation. This machine is equipped with a height digital display meter, and users can intuitively observe the real-time product drop height through the display.

technical parameter:
1. Drop height range: 400-1500mm (customizable)
2. The maximum weight of the allowable specimen: 65kg (customizable)
3. The maximum allowable size of the test piece: 1000mm× 800mm× 1000mm
4. Impact panel size: 1400mm× 1200mm
5. Support arm size: 700mm× 350mm
6. Drop error: ±10mm
7. Horsepower: increase 1/3HP, manual adjustment
8. The test system meets the specification: ISO22488-1972 (E)
9. Action mode: electric drop, manual reset
10. External dimensions of the test bench: 1400mm×1200mm×2200mm
11. Net weight: about 580kg
12. Power supply: 380V 50HZ
