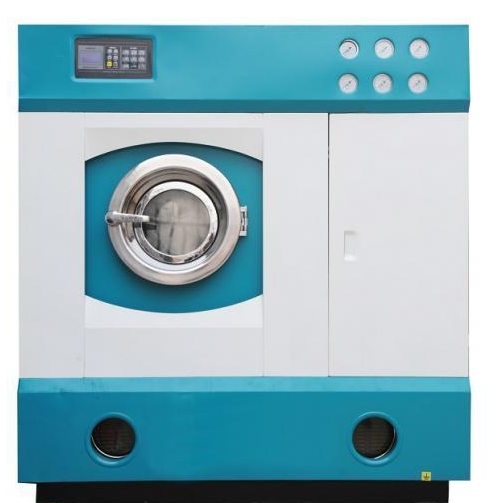

YG-6-type dry testing machine Application for Determination of clothing and textiles through various organic solvents, alkaline solution dry exterior color, size change and peel strength properties and other physical indicators of change.

Related Standards:
GB / T5711-1997 "Textiles Tests for color fastness to dry cleaning fastness"
FZ / T01083-2009 Test Method for appearance and dimensional change after dry heat-fusible interlining
FZ / T01013-1991 Determination Textiles perchlorethylene dry mechanical method of dimensional change
FZ / T80007.3-2006 use interlining garment dry-cleaning resistance test method
ISO3175.1-1: 1998, ISO3175.1-2: 1998

Instrument characteristics:
1, 16-bit processor, LCD Chinese menu, program-controlled pneumatic valves, multiple fault detection and protection,
      Police voice prompts.
2, built five sets of automatic test program, and the program can be manually programmed.
3, closed pipe, inner purification liquid loop design, the outlet activated carbon filter.
4, fluid contacting part made of stainless steel, separate additive tank, metering pump programmed rehydration.

Technical Parameters:
1, mode: microcomputer control, automatic test, LCD display Chinese, police voice prompts.
2, rated capacity: 6kg
3, roller specifications: Φ650 × 320mm
4, liquid tank capacity: 100L (2 × 50L)
5, distillation tank capacity: 50L
6, washing speed: 45r / min
7, dehydration speed: 450r / min
8, drying time: 4 ~ 60min
9, the drying temperature: room temperature -80 ℃
10, power supply: AC380V 50Hz 10kW
11, Dimensions: 1700 × 1050 × 1850mm
12, Weight: 800kg
