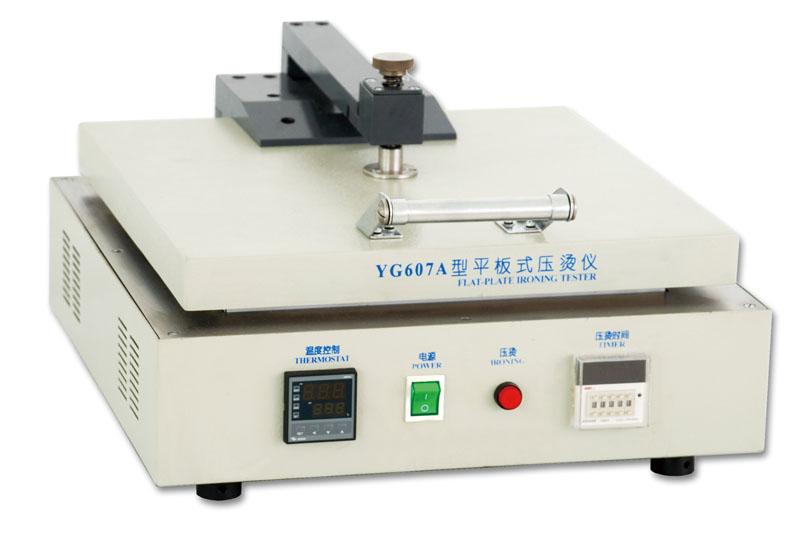

YG607A type Flatbed Pressing instrument used to evaluate the fabric, dimensional stability after heat-fusible interlining by dry heat treatment and other related properties.
Applicable standards:

GB dry thermal effect under low pressure - Part 2 / T 17031.2-1997 Textiles: Determination of dry heat by the dimensional change in fabrics
Sample preparation method FZ / T 01076-2000 clothing combinations with hot melt interlining
Determination FZ / T 01082-2000 and hot melt interlining fabric dry heat dimensional change
FZ / T 01085-2000 heat-fusible interlining cloth peel strength test method

Specifications:
Type YG607A
Temperature range from room temperature to 300%
Temperature accuracy ± 2 ℃
Test time 1 ~ 999s, LED
Pressing plate area 320 × 320mm
Test pressure 0.3kpa
Dimensions 430 × 520 × 220mm (L × W × H)
Power AC220V
